NQE to Pull Cisco WAP OS Version from Cisco (IOS-XE) WLC's.

Additional Enhancements to get Cisco AP’s from Cisco 9800 WLC’s. ​@rob Consolidated two separate Scripts I had, (one pulling software info and the other hardware eol info) into a single, HW/SW script.

Attached are the backend files that feed EoL for Hardware (hw) and recommended software for the AP’s (sw).

The csv’s needed to be loaded in NQE-->Data Files and then ‘import data file’

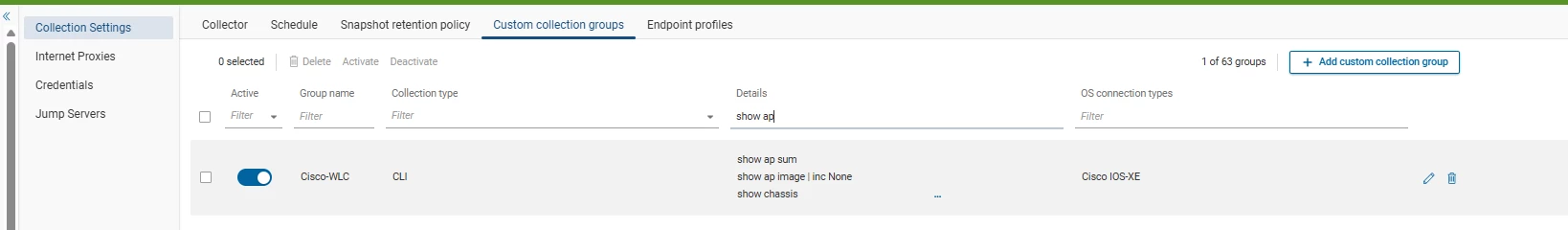

Create a Custom Collection Group for WLC’s

show ap sum

// where command.commandText == "show ap sum"

show ap image | inc None

// where command.commandText == "show ap image | inc None"

/**
* @intent Pull AP Name/Model/IP and Image (OS) from Cisco 9800 WLCs
* @description See comments inline.
*/

// Helper: return first matching value from expectedValues that appears in tags.
// Useful to derive environment/region/function manager etc. from device tag list.
export get_list_match_from_tags(tags: Bag<String>,
                                   expectedValues: Bag<String>) =
  max(foreach v in expectedValues
      where v in tags
      select v);

// Convenience exported tag-lookup helpers (wraps get_list_match_from_tags).
// Each returns the first matching tag from the provided list or null if none present.
export get_env_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["DC", "CoLo", "Branch", "Cloud", "AWS","CoWork"]);

export get_lb_function_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["lb_LTM", "lb_GTM", "lb_Hypervisor"]);

export get_mgr_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["N.Cariddi", "J.Willy", "B.Silly"]);

export get_region_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["EMEA", "AMRS", "APAC", "LATM"]);

export get_function_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["Firewall", "LB", "Proxy", "WLC", "Router", "Switch", "Controller"]);

// Back-End tables exposed as network extensions (populated in Forward environment)
SW = network.extensions.SW.value;
HW = network.extensions.HW.value;

// Simple parsing patterns for the two controller commands.
// Keep these patterns aligned to the exact CLI column output on your controllers.
apImagePattern = ```
{APName:string} {OS:string}
```;

apSummaryPattern = ```
{APName:string} {BLAH:number} {Model:string} {BLAH_w:string} {BLAH_x:string} {BLAH_y:string} {BLAH_z:string} {IP:ipv4Address}
```;

// NOTE: Ensure your Forward custom-commands for the WLC include EXACTLY
// "show ap sum" and "show ap image | inc None" (strings matched below).
// If the real CLI is "show ap summary", update the where clauses accordingly.

// Devices: Cisco 9800 WLCs are tagged "WLC"
foreach device in network.devices
where "WLC" in device.tagNames

// Cache common metadata once per device to avoid repeated tag lookups.
let env = get_env_from_tags(device.tagNames)
let region = get_region_from_tags(device.tagNames)
let deviceFunction = get_function_from_tags(device.tagNames)   // cached for reuse

// ---- Build AP summary table (name/model/ip + HW lifecycle via HW) ----
// This parses the controller 'show ap sum' output into structured rows.
// It then joins each AP model to HW rows by matching hw.PARENT == model.
let apSummaryInfos =
  (foreach command in device.outputs.commands
   where command.commandText == "show ap sum"
   // parseConfigBlocks converts raw CLI text into parseable blocks/lines for blockMatches
   let parsed = parseConfigBlocks(OS.IOS_XE, command.response)
   let matches = blockMatches(parsed, apSummaryPattern)

   // For each AP line matched, join to any HW row(s) with PARENT == model.
   // If multiple HW rows exist for a model, one row per match will be produced.
   foreach m in matches
   foreach hw in HW
   where hw.PARENT == m.data.Model

   select {
     // Device-scoped metadata (cached)
     Environment: env,
     Region: region,
     Function: deviceFunction,

     // AP identity and addressing
     AP_NAME: m.data.APName,
     AP_Model: m.data.Model,
     IP_Address: m.data.IP,

     // Lifecycle/cost metadata from HW (may be null if no row matched)
     "LDoS Year": hw.LDOS_Year,
     "Model LDoS Date": hw.LDOS_Date,
     Lifecycle: hw.STATUS,
     Replace_Cost: hw.TOTAL_COST
   })

// ---- Parse AP image output and join to summary + SW approvals via SW ----
// Parse 'show ap image | inc None' which should return "<APName> <OS>" rows.
foreach command in device.outputs.commands
where command.commandText == "show ap image | inc None"
let parsed = parseConfigBlocks(OS.IOS_XE, command.response)
let matches = blockMatches(parsed, apImagePattern)

foreach m in matches
let apName = m.data.APName
let CurrentOS = m.data.OS

// Find the matching AP summary record (by AP_NAME). Use max() as "first/any".
let apSummaryInfo =
  max(foreach s in apSummaryInfos
      where s.AP_NAME == apName
      select s)

// Safely extract model (may be null if apSummaryInfo not found)
let model = apSummaryInfo?.AP_Model

// Find the matching SW row for this AP model in SW.
// Using max() returns a single row or null if none found.
let sw =
  max(foreach row in SW
      where row.MODEL == model
      select row)

let swPresent = isPresent(sw)

// Extract relevant SW approval fields (null-safe)
let imageVendor = sw?.VENDOR
let imageN     = sw?.N
let imageN_1   = sw?["N-1"]
let imageN_2   = sw?["N-2"]

// Combine approved releases into a printable string for reporting.
let approved_sw =
  if swPresent then join(", ", [imageN, imageN_1, imageN_2]) else ""

// Final output row per AP (combines controller image info, summary info, tables)
select {
  Vendor: imageVendor,
  Environment: env,
  Region: region,
  Function: "WAP",             // business-facing label
  Manager: "J.Bone",       // static value in original script
  Type: "AP",
  Name: apName,
  Model: model,
  "Model LDoS Date": apSummaryInfo?["Model LDoS Date"],
  "LDoS Year": apSummaryInfo?["LDoS Year"],
  Lifecycle: apSummaryInfo?.Lifecycle,
  "Replace Cost": apSummaryInfo?.Replace_Cost,
  OS: device.platform.os,
  "Current-OS": CurrentOS,
  "Approved OS": approved_sw,
  // Compliance checks; returns "Pass"/"Fail" or "N/A" when no SW data exists
  "N Compliance": if swPresent then if CurrentOS in [imageN] then "Pass" else "Fail" else "N/A",
  "N/N-1/N-2 Compliance": if swPresent
                              then if CurrentOS in [imageN, imageN_1, imageN_2] then "Pass" else "Fail"
                              else "N/A",
  Location: device.locationName,
  Tags: device.tagNames,
  "Management IP(s)": apSummaryInfo?.IP_Address
}
