NQE for SNMP Audits (IOS-XE)

This is a script that ​@rob helped greatly with. It parses through SNMP configuration on IOS-XE devices. Then does a comparison of the templates in the file and provides:
What’s missing, what is extra, and the captured configuration.
I’ve added additional functionality to leverage tagging, which helps identify which config block belongs to what kind of devices. I have documented as best I can, hopefully this helps other as much as it’s helping me.

/*** * @intent SNMP Validation (IOS)
 * @description Validates Cisco IOS-XE SNMP configs and extracts community/host details.
 * * LOGIC SUMMARY:
 * 1. Checks device against 3 regional patterns (AMRS, EMEA, APAC).
 * 2. Uses the 'Hybrid Approach':
 * - Uses 'device.files.config' (Bag) for the blockDiff engine (Accuracy).
 * - Uses 'configAsString' (String) for Regex extraction (Speed).

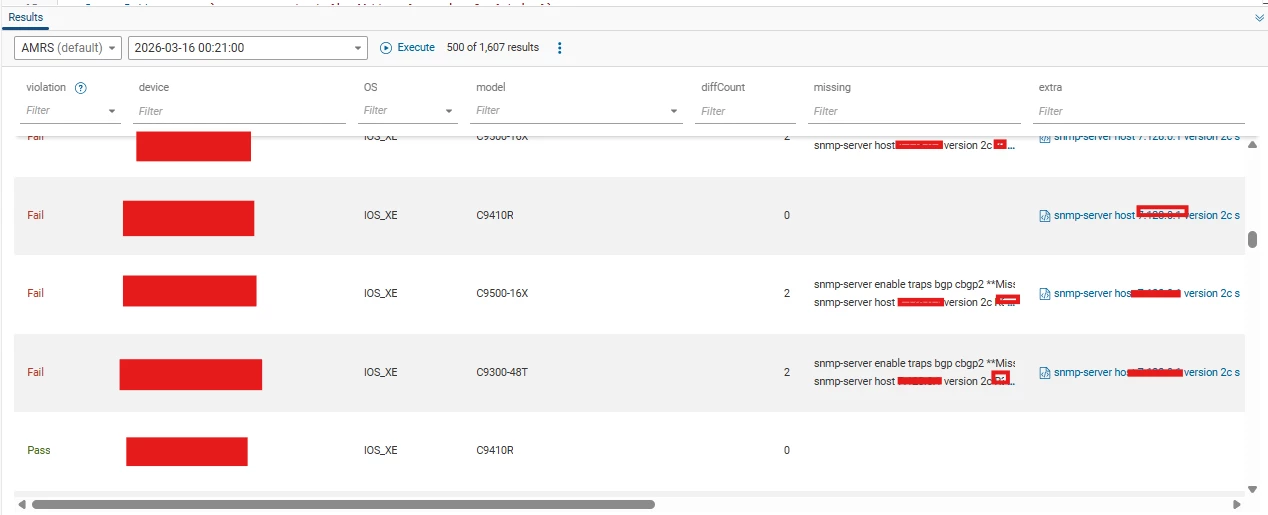

 * 3. Outputs a clean table with missing lines and current settings.
***/
// Tagging Function to look for tagged devices in order to classify configuration appropriately
export get_region_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["EMEA", "AMRS", "APAC", "LATM"]);
export get_function_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["Firewall", "LB", "Proxy", "WLC", "Router", "Switch", "Controller"]);
export get_branchModels_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["C2K", "C3K", "C4K", "C9K", "C4948", "ASR", "ISR", "C1K", "C8K","C9800","C9500"]);
export get_env_from_tags(tags: Bag<String>)=
  get_list_match_from_tags(tags, ["DC", "CoLo", "Branch", "Cloud", "AWS","CoWork"]);

// Patterns — used for both extraction and extra-line detection
snmpCommunityPattern = `snmp-server community {string}`;
snmpServerPattern    = `snmp-server host {ipv4Address} version 2c {string}`;

// Regex patterns for trap-source, location, contact (handles spaces in values)
reTrapSource = re`snmp-server trap-source\s+\S+`;
reLocation   = re`snmp-server location\s+.+`;
reContact    = re`snmp-server contact\s+.+`;

// --- 1. Helper Functions ---

minByFunc(blockDiffResult) = blockDiffResult.diffCount;

getConfigAsString(device) =
  max(foreach command in device.outputs.commands
      where command.commandType == CommandType.CONFIG
      select command.response);

// --- 2. Concrete Compliance Patterns ---

IosDiffPatternDefault =
  ```
snmp-server community xxxxxx RO snmpv3-C
snmp-server community xxxxxx RW snmpv3-A
snmp-server community xxxxxx RO snmpv3-B
snmp-server host 1.1.1.99 version 2c xxxxxx
snmp-server host 1.1.1.98 version 2c xxxxxx
snmp-server host 1.1.1.97 version 2c xxxxxx
snmp-server host 1.1.1.96 version 2c xxxxxx
snmp-server host 1.1.1.95 version 2c xxxxxx
```;

// Config patterns based on Region
IosDiffPatternAMRS =
  ```
snmp-server community Jimmy1 RO EmeaSnmpRO
snmp-server community Jimmy2 RW EmeaSnmpRW
snmp-server community Jimmy3 RO EmeaSnmpRO2
snmp-server trap-source
snmp-server location
snmp-server contact
snmp-server host 1.1.1.1 version 2c Jimmy1
snmp-server host 1.1.1.2 version 2c Jimmy2
snmp-server host 1.1.1.3 version 2c Jimmy3
```;

IosDiffPatternEMEA =
  ```
snmp-server community Jimmy1 RO EmeaSnmpRO
snmp-server community Jimmy2 RW EmeaSnmpRW
snmp-server community Jimmy3 RO EmeaSnmpRO2
snmp-server trap-source
snmp-server location
snmp-server contact
snmp-server host 1.1.1.1 version 2c Jimmy1
snmp-server host 1.1.1.2 version 2c Jimmy2
snmp-server host 1.1.1.3 version 2c Jimmy3
```;

IosDiffPatternAPAC =
  ```
snmp-server community Jimmy1 RO EmeaSnmpRO
snmp-server community Jimmy2 RW EmeaSnmpRW
snmp-server community Jimmy3 RO EmeaSnmpRO2
snmp-server trap-source
snmp-server location
snmp-server contact
snmp-server host 1.1.1.1 version 2c Jimmy1
snmp-server host 1.1.1.2 version 2c Jimmy2
snmp-server host 1.1.1.3 version 2c Jimmy3
```;

IosDiffPatternApacLan =
  ```
snmp-server community Jimmy1 RO snmpRO
snmp-server community Jimmy2 RW snmpRW
snmp-server community Jimmy3 RO snmpRO2
snmp-server trap-source
snmp-server location
snmp-server contact
snmp-server host 1.1.1.1 version 2c Jimmy1
snmp-server host 1.1.1.2 version 2c Jimmy2
snmp-server host 1.1.1.3 version 2c Jimmy3
```;

// --- 4. Main Logic ---
main =
  foreach device in network.devices
  where device.platform.os == OS.IOS_XE
  where device.name == device.system.physicalName

  let configResponse = getConfigAsString(device)
  let configAsString = if isPresent(configResponse) then configResponse else ""

  let region       = get_region_from_tags(device.tagNames)
  let deviceFunc   = get_function_from_tags(device.tagNames)
  let environment  = get_env_from_tags(device.tagNames)
  let branchModels = get_branchModels_from_tags(device.tagNames)

  let IosDiffPattern =
    if region == "AMRS" then IosDiffPatternAMRS
    else if region == "EMEA" then IosDiffPatternEMEA
    else if region == "APAC" && deviceFunc == "Switch" &&
            environment == "Branch" &&
            (branchModels == "C9K" || branchModels == "C4948" ||
             branchModels == "C4K" || branchModels == "C3K" || branchModels == "C2K")
    then IosDiffPatternApacLan
    else if region == "APAC" then IosDiffPatternAPAC
  // Default to pattern 1 if no match is made.
    else IosDiffPatternDefault

  // Step 2.5: compute valid lines from the selected standard pattern
  let patternAsConfig =
    parseConfigBlocks(OS.OTHER, replace(toString(IosDiffPattern), "```", ""))

  let validLines =
    (foreach patternMatch in patternMatches(patternAsConfig, snmpCommunityPattern)
     select patternMatch.line.text) +
    (foreach patternMatch in patternMatches(patternAsConfig, snmpServerPattern)
     select patternMatch.line.text)

  // Step 3: blockDiff for missing lines
  let blockDiffResult = blockDiff(device.files.config, IosDiffPattern)

  // Collect only "snmp-server community ..." lines from the device
  let configuredCommunityLines =
    (foreach patternMatch in patternMatches(device.files.config, snmpCommunityPattern)
     select patternMatch.line.text)

  // Collect only "snmp-server host ..." lines from the device
  let configuredHostLines =
    (foreach patternMatch in patternMatches(device.files.config, snmpServerPattern)
     select patternMatch.line.text)

  // Collect trap-source, location, contact lines using regex (supports spaces in values)
  let configuredTrapSourceLines =
    (foreach r in regexMatches(configAsString, reTrapSource)
     select r.string)

  let configuredLocationLines =
    (foreach r in regexMatches(configAsString, reLocation)
     select r.string)

  let configuredContactLines =
    (foreach r in regexMatches(configAsString, reContact)
     select r.string)

  let configuredLines = configuredCommunityLines + configuredHostLines
  let extraLines      = configuredLines - validLines

  // Combine all relevant SNMP lines into one deduplicated ordered list for display
  let snmpConfigList = distinct(
    configuredCommunityLines +
    configuredHostLines +
    configuredTrapSourceLines +
    configuredLocationLines +
    configuredContactLines
  )

  select {
    violation:  blockDiffResult.diffCount > 0 || length(extraLines) > 0,
    device:     device.name,
    OS:         device.platform.os,
    model:      device.platform.model,
    diffCount:  blockDiffResult.diffCount,
    missing:    blockDiffResult.blocks,
    extra:      extraLines,
    // Combined: community, host, trap-source, location, contact (sorted alphabetically)
    SNMP_Config: if length(snmpConfigList) == 0
                 then "None"
                 else join("\n", order(snmpConfigList)),
    environment: get_env_from_tags(device.tagNames),
    region:      region,
    function:    deviceFunc,
    manager:     get_mgr_from_tags(device.tagNames)
  };

export ios_snmp_compliance = main();

main()
