As part of a network initiative, I’m sharing all the scripts that I have worked on to create an audit program. These files feed are then fed into PowerBi for better visualization by engineers and mgmt.

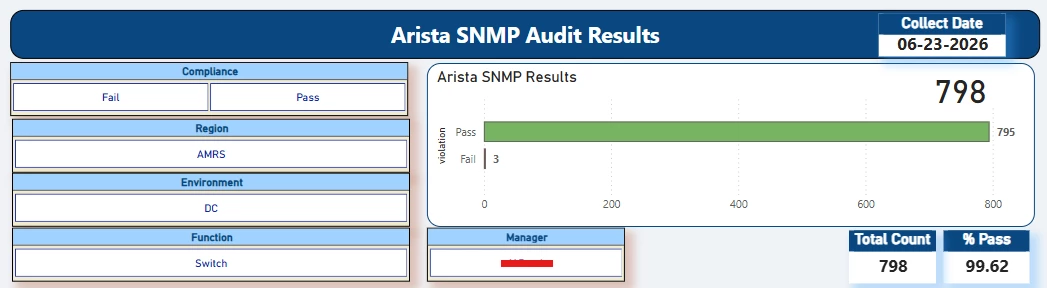

Arista Check
/*** * @intent SNMP Validation (eos)
* @description Validates Arista EOS SNMP configs and extracts all snmp-server lines.
***/
// ====================================================================================
// SECTION 0 — Tag Functions to allow granular matching of templates to device. This is
// the minimum information I need to classify all the devices in our network
// ===================================================================================
// Type of environment
export get_list_match_from_tags(tags: Bag<String>,
expectedValues: Bag<String>) =
max(foreach v in expectedValues
where v in tags
select v);
export get_env_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["DC", "CoLo", "Branch", "Cloud", "CoWork"]);
// Which manager owns device
export get_mgr_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Moe", "Larry", "Curly"]);
// Which region
export get_region_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["EMEA", "AMRS", "APAC", "LATM"]);
// What is the role
export get_function_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Firewall", "LB", "Proxy", "WLC", "Router", "Switch", "Controller"]);
// Which VRF
export return_vrf_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["vrf_Mgmt-vrf", "vrf_1", "vrf_NM", "vrf_None", "vrf_management", "vrf_mgmt", "vrf_default" ]);
// Which interface for management source
export return_mgmt_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, [ "Mgmt_Lo0", "Mgmt_Ma0", "Mgmt_Gi0", "Mgmt_Ma1" ]);
// ----------------------------------------------------------------------------
// --- NQE Patterns (used for patternMatches + blockDiff) ---
// ----------------------------------------------------------------------------
snmpCommunityPattern = `snmp-server community {string}`;
snmpServerPattern = `snmp-server host {ipv4Address} version 2c {string}`;
// ----------------------------------------------------------------------------
// --- Regex Patterns ---
reSnmpServer = re`no snmp-server [^\n]*|snmp-server [^\n]*`;
reSnmpContact = re`snmp-server contact[^\n]*`;
reSnmpLocation = re`snmp-server location[^\n]*`;
// ===================================================================================
// --- 1. Functions ---
// ===================================================================================
getConfigAsString(device) =
max(foreach command in device.outputs.commands
where command.commandType == CommandType.CONFIG
select command.response);
// ===================================================================================
// --- 2. Compliance Patterns ---
// ===================================================================================
// If no matches assign "INVESTIGATE" //
Investigate = ```
Investigate
```;
// ---------------------------Loopback0-----------------------------------------
eosDiffPatternAMRS_Lo0 = ```
snmp-server contact
snmp-server location
snmp-server local-interface Loopback0
snmp-server community CommReadOnly1 ro 1502
snmp-server community CommReadOnly2 ro 1500
snmp-server community CommReadOnly3 ro 1500
snmp-server host 192.0.2.10 version 2c CommReadOnly2
snmp-server host 192.0.2.20 version 2c CommReadOnly2
snmp-server host 192.0.2.30 version 2c CommReadOnly2
snmp-server host 192.0.2.40 version 2c CommReadOnly2
snmp-server host 192.0.2.10 version 2c CommReadOnly3
snmp-server host 192.0.2.20 version 2c CommReadOnly3
snmp-server host 192.0.2.30 version 2c CommReadOnly3
snmp-server host 192.0.2.40 version 2c CommReadOnly3
snmp-server enable traps snmp
ip access-list standard 1500
ip access-list standard 1502
```;
// ---------------------------Mgmt1 vrf NM-----------------------------------------
eosDiffPatternAMRS_Ma0_vrfNM = ```
snmp-server contact
snmp-server location
snmp-server vrf NM local-interface Management1
snmp-server community CommReadOnly1 ro 1502
snmp-server community CommReadOnly2 ro 1500
snmp-server community CommReadOnly3 ro 1500
snmp-server host 192.0.2.10 vrf NM version 2c CommReadOnly2
snmp-server host 192.0.2.20 vrf NM version 2c CommReadOnly2
snmp-server host 192.0.2.30 vrf NM version 2c CommReadOnly2
snmp-server host 192.0.2.40 vrf NM version 2c CommReadOnly2
snmp-server host 192.0.2.10 vrf NM version 2c CommReadOnly3
snmp-server host 192.0.2.20 vrf NM version 2c CommReadOnly3
snmp-server host 192.0.2.30 vrf NM version 2c CommReadOnly3
snmp-server host 192.0.2.40 vrf NM version 2c CommReadOnly3
snmp-server enable traps snmp
snmp-server enable traps bgp
snmp-server vrf NM
ip access-list standard 1500
ip access-list standard 1502
```;
// ===================================================================================
// --- 3. Main Logic ---
// ===================================================================================
main =
foreach device in network.devices
where device.platform.os == OS.ARISTA_EOS
where device.name == device.system.physicalName
where "DC" in device.tagNames
let configResponse = getConfigAsString(device)
let configAsString = if isPresent(configResponse) then configResponse else ""
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp
// STEP 3a: match compliance template — each branch returns {block: <template>, name: "<templateName>"}
let selected =
if environment == "DC" && mgmtSource == "Mgmt_Lo0" && vrf == "vrf_None" then {block: eosDiffPatternAMRS_Lo0, name: "eosDiffPatternAMRS_Lo0"}
else if environment == "DC" && mgmtSource == "Mgmt_Ma1" && vrf == "vrf_NM" then {block: eosDiffPatternAMRS_Ma0_vrfNM, name: "eosDiffPatternAMRS_Ma0_vrfNM"}
// add more conditions if necessary
// final else statement if no matches
else {block: Investigate, name: "Investigate"}
let eosDiffPattern = selected.block
let patternName = selected.name// STEP 3.4: Build valid lines from the selected template
let patternStr = replace(toString(eosDiffPattern), "```", "")
let patternLines = (foreach r in regexMatches(patternStr, reSnmpServer) select r.string)
let deviceContactLines = (foreach r in regexMatches(configAsString, reSnmpContact) select r.string)
let deviceLocationLines = (foreach r in regexMatches(configAsString, reSnmpLocation) select r.string)
let validLines =
(foreach line in patternLines where line != "snmp-server contact" && line != "snmp-server location" select line) + deviceContactLines + deviceLocationLines
// STEP 3b: Calculate diffs
let blockDiffResult = blockDiff(device.files.config, eosDiffPattern)
// STEP 3c: Collect ALL snmp-server lines from device via regex
let snmpList = (foreach r in regexMatches(configAsString, reSnmpServer) select r.string)
let extraLines = snmpList - validLines
// STEP 3d: Output results
select {
// First violation is standard, but I want print "Pass or Fail" so I use the next for powerBi import
// violation: blockDiffResult.diffCount > 0 || length(extraLines) > 0,
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0 then "Fail" else "Pass",
device: device.name,
ip: ip,
os: device.platform.osVersion,
model: device.platform.model,
pattern: patternName,
missing: if blockDiffResult.diffCount == 0 then "None" else toString(blockDiffResult.blocks),
extra: if length(extraLines) == 0 then "None" else join("\n", order(extraLines)),
config: if length(snmpList) == 0 then "None" else join("\n", order(snmpList)),
region: region,
vrf: vrf,
mgmtSource: mgmtSource,
environment: environment,
function: deviceFunc,
manager: manager,
tags: device.tagNames,
};
export eos_snmp_compliance = main();

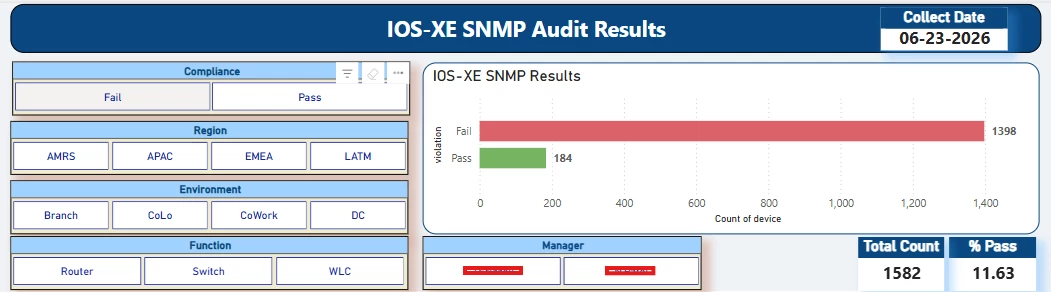

main()IOS-XE Check
/*** * @intent SNMP Validation (IOS-XE)
* @description Validates Cisco IOX-XE SNMP configs and extracts all snmp-server lines.
***/
// ====================================================================================
// SECTION 0 — Tag Functions to allow granular matching of templates to device. This is
// the minimum information I need to classify all the devices in our network
// ===================================================================================
// Type of environment
export get_list_match_from_tags(tags: Bag<String>,
expectedValues: Bag<String>) =
max(foreach v in expectedValues
where v in tags
select v);
export get_env_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["DC", "CoLo", "Branch", "Cloud", "CoWork"]);
// Which manager owns device
export get_mgr_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Moe", "Larry", "Curly"]);
// Which region
export get_region_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["EMEA", "AMRS", "APAC", "LATM"]);
// What is the role
export get_function_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Firewall", "LB", "Proxy", "WLC", "Router", "Switch", "Controller"]);
// Which VRF
export return_vrf_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["vrf_Mgmt-vrf", "vrf_1", "vrf_NM", "vrf_None", "vrf_management", "vrf_mgmt", "vrf_default" ]);
// Which interface for management source
export return_mgmt_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, [ "Mgmt_Lo0", "Mgmt_Ma0", "Mgmt_Gi0", "Mgmt_Ma1" ]);
// ------------------------------------------------------------------//
// RegexPatterns — regex for pattern extraction
// ------------------------------------------------------------------//
snmpCommunityPattern = `snmp-server community {string}`;
snmpServerPattern = `snmp-server host {ipv4Address} version 2c {string}`;
snmpServerVrfPattern = `snmp-server host {ipv4Address} vrf {string} version 2c {string}`;
reTrapSource = re`snmp-server trap-source\s+\S+`;
reLocation = re`snmp-server location\s+.+`;
reContact = re`snmp-server contact\s+.+`;
// ------------------------------------------------------------------//
// --- 1. Helper Functions ---
// ------------------------------------------------------------------//
getConfigAsString(device) =
max(foreach command in device.outputs.commands
where command.commandType == CommandType.CONFIG
select command.response);
// ------------------------------------------------------------------//
// --- 2. Compliance Patterns ---
// ------------------------------------------------------------------//
IosDiffPatternDefault =
```
Investigate
```;
// these are pulled from Ryders GitHub Reposit
IosDiffPatternAmrsLan = blockPattern(network.externalSources.forwardbranchconfigs.snmpAmrsLan);
IosDiffPatternAmrsSdwan = blockPattern(network.externalSources.forwardbranchconfigs.snmpAmrsSdwan);
// ------------------ AMRS DC ---------------------//
AmrsDC_Lo0_vNone = ```
snmp-server contact
snmp-server location
snmp-server local-interface Loopback0
snmp-server community CommReadOnly1 ro 1502
snmp-server community CommReadOnly2 ro 1500
snmp-server community CommReadOnly3 ro 1500
snmp-server host 192.0.2.10 version 2c CommReadOnly1
snmp-server host 192.0.2.20 version 2c CommReadOnly1
snmp-server host 192.0.2.30 version 2c CommReadOnly1
snmp-server host 192.0.2.40 version 2c CommReadOnly2
snmp-server host 192.0.2.10 version 2c CommReadOnly2
snmp-server host 192.0.2.20 version 2c CommReadOnly2
snmp-server host 192.0.2.30 version 2c CommReadOnly3
snmp-server host 192.0.2.40 version 2c CommReadOnly3
snmp-server enable traps snmp
ip access-list standard 1500
ip access-list standard 1502
```;
// ------------------ AMRS DC source Gi0 vrf Mgmt-Intf ---------------------//
AmrsDC_Gi0_vMgmt_intf = ```
snmp-server community CommReadOnly2 RO 1500
snmp-server community CommReadOnly3 RO 1502
snmp-server community CommReadOnly1 RO 1500
snmp-server community CommReadOnly4 RO 1502
snmp-server trap-source GigabitEthernet0
snmp-server host 192.0.2.10 vrf Mgmt-intf version 2c CommReadOnly1
snmp-server host 192.0.2.10 vrf Mgmt-intf version 2c CommReadOnly1
snmp-server host 192.0.2.20 vrf Mgmt-intf version 2c CommReadOnly1
snmp-server host 192.0.2.30 vrf Mgmt-intf version 2c CommReadOnly1
snmp-server host 192.0.2.40 vrf Mgmt-intf version 2c CommReadOnly2
snmp-server host 192.0.2.10 vrf Mgmt-intf version 2c CommReadOnly2
snmp-server host 192.0.2.20 vrf Mgmt-intf version 2c CommReadOnly2
snmp-server host 192.0.2.30 vrf Mgmt-intf version 2c CommReadOnly3
snmp-server host 192.0.2.40 vrf Mgmt-intf version 2c CommReadOnly3
snmp-server enable traps snmp
ip access-list standard 1500
ip access-list standard 1502
```;
// ------------------ Add more patterns if you need ---------------------//
// ------------------------------------------------------------------//
// --- 3. Main Logic ---
// ------------------------------------------------------------------//
main =
foreach device in network.devices
where device.platform.os == OS.IOS_XE
where device.name == device.system.physicalName
let configResponse = getConfigAsString(device)
let configAsString = if isPresent(configResponse) then configResponse else ""
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp
// Each returns {block: <template>, name: "<templateName>"}
let selected =
if region == "AMRS" && mgmtSource == "Mgmt_Gi0" && vrf == "vrf_Mgmt-intf" && environment == "DC" && deviceFunc == "Router" then {block: AmrsDC_Gi0_vMgmt_intf, name: "AmrsDC_Gi0_vMgmt_intf"}
else if region == "AMRS" && mgmtSource == "Mgmt_Lo0" && vrf == "vrf_None" && environment == "CoLo" && deviceFunc == "Router" then {block: AmrsDC_Lo0_vNone, name: "AmrsDC_Lo0_vNone"}
else {block: IosDiffPatternDefault, name: "Dummy_Investigate"}
let IosDiffPattern = selected.block
let patternName = selected.name
// Get valid lines from the selected standard pattern.
let patternAsString = replace(toString(IosDiffPattern), "```", "")
let patternAsConfig = parseConfigBlocks(OS.OTHER, patternAsString)
let validLines =
(foreach patternMatch in patternMatches(patternAsConfig, snmpCommunityPattern)
select patternMatch.line.text) +
(foreach patternMatch in patternMatches(patternAsConfig, snmpServerPattern)
select patternMatch.line.text) +
(foreach patternMatch in patternMatches(patternAsConfig, snmpServerVrfPattern)
select patternMatch.line.text) +
(foreach r in regexMatches(patternAsString, reTrapSource) select r.string)
// blockDiff for missing lines
let blockDiffResult = blockDiff(device.files.config, IosDiffPattern)
// "snmp-server community
let configuredCommunityLines =
(foreach patternMatch in patternMatches(device.files.config, snmpCommunityPattern)
select patternMatch.line.text)
// standard "snmp-server host
let configuredHostLines =
(foreach patternMatch in patternMatches(device.files.config, snmpServerPattern)
select patternMatch.line.text)
// vrf-style "snmp-server host ... vrf
let configuredHostVrfLines =
(foreach patternMatch in patternMatches(device.files.config, snmpServerVrfPattern)
select patternMatch.line.text)
// trap-source, location, contact lines using regex
let configuredTrapSourceLines = (foreach r in regexMatches(configAsString, reTrapSource) select r.string)
let configuredLocationLines = (foreach r in regexMatches(configAsString, reLocation) select r.string)
let configuredContactLines = (foreach r in regexMatches(configAsString, reContact) select r.string)
// Include both host line types AND trap-source in configured + extra calculations.
let configuredLines = configuredCommunityLines + configuredHostLines + configuredHostVrfLines + configuredTrapSourceLines
let extraLines = configuredLines - validLines
// Combine all relevant SNMP lines for display
let snmpConfigList = distinct(
configuredCommunityLines +
configuredHostLines +
configuredHostVrfLines +
configuredTrapSourceLines +
configuredLocationLines +
configuredContactLines
)
select {
// violation: blockDiffResult.diffCount > 0 || length(extraLines) > 0,
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0 then "Fail" else "Pass",
device: device.name,
OS: device.platform.os,
model: device.platform.model,
ip: ip,
pattern: patternName,
diffCount: blockDiffResult.diffCount,
missing: blockDiffResult.blocks,
extra: if length(extraLines) == 0 then "None" else join("\n", extraLines),
config: if length(snmpConfigList) == 0 then "None" else join("\n", order(snmpConfigList)),
region: region,
environment: environment,
mgmtSource: mgmtSource,
vrf: vrf,
function: deviceFunc,
manager: manager,
tags: device.tagNames,
};
export ios_snmp_compliance = main();
main()NX-OS Check
/***
* @intent SNMP Validation (NX-OS)
* @description Validates Cisco NX-OS SNMP configs and extracts community/host/mib details.
***/
// ====================================================================================
// SECTION 0 — Tag Functions to allow granular matching of templates to device. This is
// the minimum information I need to classify all the devices in our network
// ===================================================================================
// Type of environment
export get_list_match_from_tags(tags: Bag<String>,
expectedValues: Bag<String>) =
max(foreach v in expectedValues
where v in tags
select v);
export get_env_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["DC", "CoLo", "Branch", "Cloud", "CoWork"]);
// Which manager owns device
export get_mgr_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Moe", "Larry", "Curly"]);
// Which region
export get_region_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["EMEA", "AMRS", "APAC", "LATM"]);
// What is the role
export get_function_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["Firewall", "LB", "Proxy", "WLC", "Router", "Switch", "Controller"]);
// Which VRF
export return_vrf_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, ["vrf_Mgmt-vrf", "vrf_1", "vrf_NM", "vrf_None", "vrf_management", "vrf_mgmt", "vrf_default" ]);
// Which interface for management source
export return_mgmt_from_tags(tags: Bag<String>)= get_list_match_from_tags(tags, [ "Mgmt_Lo0", "Mgmt_Ma0", "Mgmt_Gi0", "Mgmt_Ma1" ]);
// ===================================================================================
// --- 1. NQE Inline Patterns ---
// ===================================================================================
// Used by patternMatches() against parseConfigBlocks() output for valid-line extraction.
// THREE patterns are needed for NX-OS SNMP host lines because a single host entry
// spans TWO config lines with different syntax:
snmpCommunityPattern = `snmp-server community {string}`;
snmpHostTrapsPattern = `snmp-server host {ipv4Address} traps version 2c {string}`;
snmpHostVrfPattern = `snmp-server host {ipv4Address} use-vrf {string}`;
// ===================================================================================
// --- 2. Regex Patterns ---
// ===================================================================================
// Matches ALL "snmp-server xxx ..." lines (both traps and use-vrf forms)
reNxosHostPattern = re`snmp-server host[^\n]*`;
reNxosCommunityPattern = re`snmp-server community[^\n]*`;
reNxosMibPattern = re`snmp-server mib[^\n]*`;
reTrapSource = re`snmp-server source-interface traps\s+\S+`;
reLocation = re`snmp-server location\s+.+`;
reContact = re`snmp-server contact\s+.+`;
reSnmpUserAdmin = re`snmp-server user admin`;
// ===================================================================================
// --- 3. Helper Functions ---
// ===================================================================================
getConfigAsString(device) =
max(foreach command in device.outputs.commands
where command.commandType == CommandType.CONFIG
select command.response);
isAciNode(device) =
CommandType.CISCO_ACI_FABRIC_VRFS in
(foreach command in device.outputs.commands
select command.commandType);
// ===================================================================================
// --- 4. Compliance Patterns ---
// ===================================================================================
// ---------------------------------------------------
// ---------------- AMRS -----------------------------
// ---------------------------------------------------
NxosPattnerAmrs_Ma0_vrfManagement = ```
snmp-server source-interface traps mgmt0
snmp-server user admin network-admin
snmp-server host 192.168.2.10 traps version 2c Community1
snmp-server host 192.168.2.10 use-vrf management
snmp-server host 192.168.2.20 traps version 2c Community1
snmp-server host 192.168.2.20 use-vrf management
snmp-server host 192.168.2.30 traps version 2c Community1
snmp-server host 192.168.2.30 use-vrf management
snmp-server host 192.168.2.40 traps version 2c Community1
snmp-server host 192.168.2.40 use-vrf management
snmp-server context default vrf management
snmp-server community Community2 group network-operator
snmp-server community Community1 group network-operator
snmp-server community Community1 group network-operator
snmp-server mib community-map Community2 context default
snmp-server mib community-map Community1 context default
snmp-server mib community-map Community1 context default
snmp-server community Community2 use-ipv4acl 1502
snmp-server community Community1 use-ipv4acl 1500
snmp-server community Community1 use-ipv4acl 1500
```;
// ---------------------------------------------------
// ---------------- LATM -----------------------------
// ---------------------------------------------------
nxosLATM_Lo0_GAN_DC = ```
snmp-server source-interface traps loopback0
snmp-server user admin network-admin auth md5
snmp-server host 192.168.2.10 traps version 2c Community1
snmp-server host 192.168.2.10 use-vrf GAN
snmp-server host 192.168.2.20 traps version 2c Community1
snmp-server host 192.168.2.20 use-vrf GAN
snmp-server host 192.168.2.30 traps version 2c Community1
snmp-server host 192.168.2.30 use-vrf GAN
snmp-server host 192.168.2.40 traps version 2c Community1
snmp-server host 192.168.2.40 use-vrf GAN
snmp-server context default vrf GAN
snmp-server community Community1 group network-operator
snmp-server community Community2 group network-operator
snmp-server community Community2 use-ipv4acl 1502
snmp-server community Community1 use-ipv4acl 1500
```;
// ---------------------------------------------------
// ---------------- EMEA -----------------------------
// ---------------------------------------------------
// vrf management mgmt0
nxosEMEA_VRFmanagement = ```
snmp-server source-interface traps mgmt0
snmp-server user admin network-admin auth md5
snmp-server host 7.128.0.1 traps version 2c Community1
snmp-server host 7.128.0.1 use-vrf management
snmp-server host 192.168.2.10 traps version 2c Community1
snmp-server host 192.168.2.10 use-vrf management
snmp-server host 192.168.2.20 traps version 2c Community1
snmp-server host 192.168.2.20 use-vrf management
snmp-server host 7.10.255.250 traps version 2c Community1
snmp-server host 7.10.255.250 use-vrf management
snmp-server host 192.168.2.30 traps version 2c Community1
snmp-server host 192.168.2.30 use-vrf management
snmp-server host 192.168.2.40 traps version 2c Community1
snmp-server host 192.168.2.40 use-vrf management
snmp-server host 7.6.255.250 traps version 2c Community1
snmp-server host 7.6.255.250 use-vrf management
snmp-server context default vrf management
snmp-server community *******: group network-admin
snmp-server community Community2 group network-operator
snmp-server community Community1 group network-operator
snmp-server community Community2 use-acl 1502
snmp-server community Community1 use-acl 1500
```;
// ---------------------------------------------------
// ---------------- APAC -----------------------------
// ---------------------------------------------------
nxosAPAC = ```
snmp-server source-interface traps mgmt0
snmp-server user admin network-admin auth md5
snmp-server user gnsindia network-admin auth md5
snmp-server user netadmin network-admin auth md5
snmp-server host 10.100.131.246 traps version 2c Community3
snmp-server host 10.100.131.246 use vrf-default
snmp-server host 192.168.2.10 traps version 2c Community1
snmp-server host 192.168.2.10 use-vrf default
snmp-server host 192.168.2.20 traps version 2c Community1
snmp-server host 192.168.2.20 use-vrf default
snmp-server host 192.168.2.30 traps version 2c Community1
snmp-server host 192.168.2.30 use-vrf default
snmp-server host 192.168.2.40 traps version 2c Community1
snmp-server host 192.168.2.40 use-vrf default
snmp-server context default vrf default
snmp-server community Community1 group network-operator
snmp-server community Community2 group network-operator
snmp-server community Community3 group network-operator
snmp-server mib community-map Community2 context default
snmp-server mib community-map Community1 context default
snmp-server community Community2 use-ipv4acl 1502
snmp-server community Community1 use-ipv4acl 1500
```;
// Dummy fallback — Identify Non-matches
nxosDummy = ```
investigate
```;
// ===================================================================================
// --- 5. Main Logic ---
// ===================================================================================
main =
foreach device in network.devices
where device.platform.os == OS.NXOS
where !isAciNode(device)
where device.name == device.system.physicalName
// ===================================================================================
// 5a: Get config as String for regex extraction
let configResponse = getConfigAsString(device)
let configAsString = if isPresent(configResponse) then configResponse else ""
// ===================================================================================
// 5b: Collect tag-based metadata
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let subDc = get_SubDc_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let auth = get_auth_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp
// ===================================================================================
// 5c. Each branch returns {block: <template>, name: "<templateName>"}
let selected =
// --- LATM ---
if region == "LATM" && environment == "DC" && vrf == "vrf_ADPGAN" && mgmtSource == "Mgmt_Lo0" then {block: nxosLATM_Lo0_ADPGAN_DC, name: "nxosLATM_Lo0_ADPGAN_DC"}
// --- EMEA ---
else if region == "EMEA" && environment == "DC" && vrf == "vrf_None" && mgmtSource == "Mgmt_Ma0" then {block: nxosEMEA_VRFmanagement, name: "nxosEMEA_VRFmanagement"}
// --- APAC ---
else if region == "APAC" && vrf == "vrf_None" && mgmtSource == "Mgmt_Ma0" then {block: nxosAPAC, name: "nxosAPAC"}
// --- AMRS ---
else if region == "AMRS" && vrf == "vrf_management" && mgmtSource == "Mgmt_Ma0" then {block: NxosPattnerAmrs_Ma0_vrfManagement, name: "NxosPattnerAmrs_Ma0_vrfManagement"}
// --- Default ---
else {block: nxosDummy, name: "No_Match_Investigate"}
let NxosDiffPattern = selected.block
let patternName = selected.name
// Re-run blockDiff against the tag-selected pattern
let blockDiffResult = blockDiff(device.files.config, NxosDiffPattern)
// Parse the winning pattern for valid-line extraction
let patternAsConfig =
parseConfigBlocks(OS.OTHER, replace(toString(NxosDiffPattern), "```", ""))
let validLines =
(foreach patternMatch in patternMatches(patternAsConfig, snmpCommunityPattern)
select patternMatch.line.text) +
(foreach patternMatch in patternMatches(patternAsConfig, snmpHostTrapsPattern)
select patternMatch.line.text) +
(foreach patternMatch in patternMatches(patternAsConfig, snmpHostVrfPattern)
select patternMatch.line.text)
// 5d: Collect actual SNMP lines from the device using regex
let hostList =
(foreach r in regexMatches(configAsString, reNxosHostPattern)
select r.string)
let communityList = (foreach r in regexMatches(configAsString, reNxosCommunityPattern) select r.string)
let mibList = (foreach r in regexMatches(configAsString, reNxosMibPattern) select r.string)
let trapSourceList = (foreach r in regexMatches(configAsString, reTrapSource) select r.string)
let locationList = (foreach r in regexMatches(configAsString, reLocation) select r.string)
let contactList = (foreach r in regexMatches(configAsString, reContact) select r.string)
let userAdminList = (foreach r in regexMatches(configAsString, reSnmpUserAdmin) select r.string)
// 5e: Compute extra lines
let configuredLines = hostList + communityList
let extraLines = configuredLines - validLines
// 5f: Combine all relevant SNMP lines for display
let snmpConfigList = distinct(
hostList +
communityList +
mibList +
trapSourceList +
locationList +
contactList +
userAdminList
)
// 5g - Choose data
select {
// violation: blockDiffResult.diffCount > 0 || length(extraLines) > 0,
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0
then "Fail"
else "Pass",
device: device.name,
ip: ip,
os: device.platform.osVersion,
model: device.platform.model,
pattern: patternName,
missing: blockDiffResult.blocks,
extra: if length(extraLines) == 0 then "None" else join("\n", order(extraLines)),
config: if length(snmpConfigList) == 0
then "None"
else join("\n", order(snmpConfigList)),
region: region,
vrf: vrf,
mgmtSource: mgmtSource,
environment: environment,
SubEnv: subDc,
function: deviceFunc,
auth: auth,
manager: manager,
tags: device.tagNames
};
export nxos_snmp_compliance = main();
main()
