As part of a network initiative, I’m sharing all the scripts that I have worked on to create an audit program. These files feed are then fed into PowerBi for better visualization by engineers and mgmt.
Starting with AAA.
First step is create a utility called, “tag_var_util” to grab tags, of which, will be used as part of the logic to assign a template to different sets of attribtues.
This utility will then be imported on all other NQE Audit Scripts.
// Best practice is to tag all devices with the following:
// Environment && Sub-Environment && Manager && Region && Function && VRF && Mgmt-Interface (source interface for mgmt. traffic)
// Each Script will import the utilities: import "PROD/Standards_Network/NetworkVars/tag_var_util";
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let subDc = get_SubDc_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp
// Create a new NQE Function called: tag_var_util
// Add the following utility to extract tags given to devices in Forward Networks Sources
// TAGS to identify Environment
export get_env_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"DC",
"CoLo",
"Branch",
"AWS"]);
// TAGS to identify a sub category of location
export get_SubDc_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"Branch",
"DC01",
"DC02" ]);
// TAGS to identify which managers owns the product
export get_mgr_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"Moe",
"Larry",
"Curly"
]);
// TAGS to identify which region a device resides
export get_region_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"EMEA",
"AMRS",
"APAC",
"LATM"
]);
// TAGS to identify what function a device performs
export get_function_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"Firewall",
"LB",
"Proxy",
"WLC",
"Router",
"Switch",
"Controller"
]);
// TAGS to identify if a VRF is associated with Mgmt_interface for a device
export return_vrf_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"vrf_1",
"vrf_NM",
"vrf_None",
"vrf_mgmt"
]);
// TAGS to identify the management interface for a device
export return_mgmt_from_tags(tags: Bag<String>)=
get_list_match_from_tags(tags, [
"mgmt_mgmt0",
"Mgmt_Lo0",
"Mgmt_Ma0",
"Mgmt_Gi0"

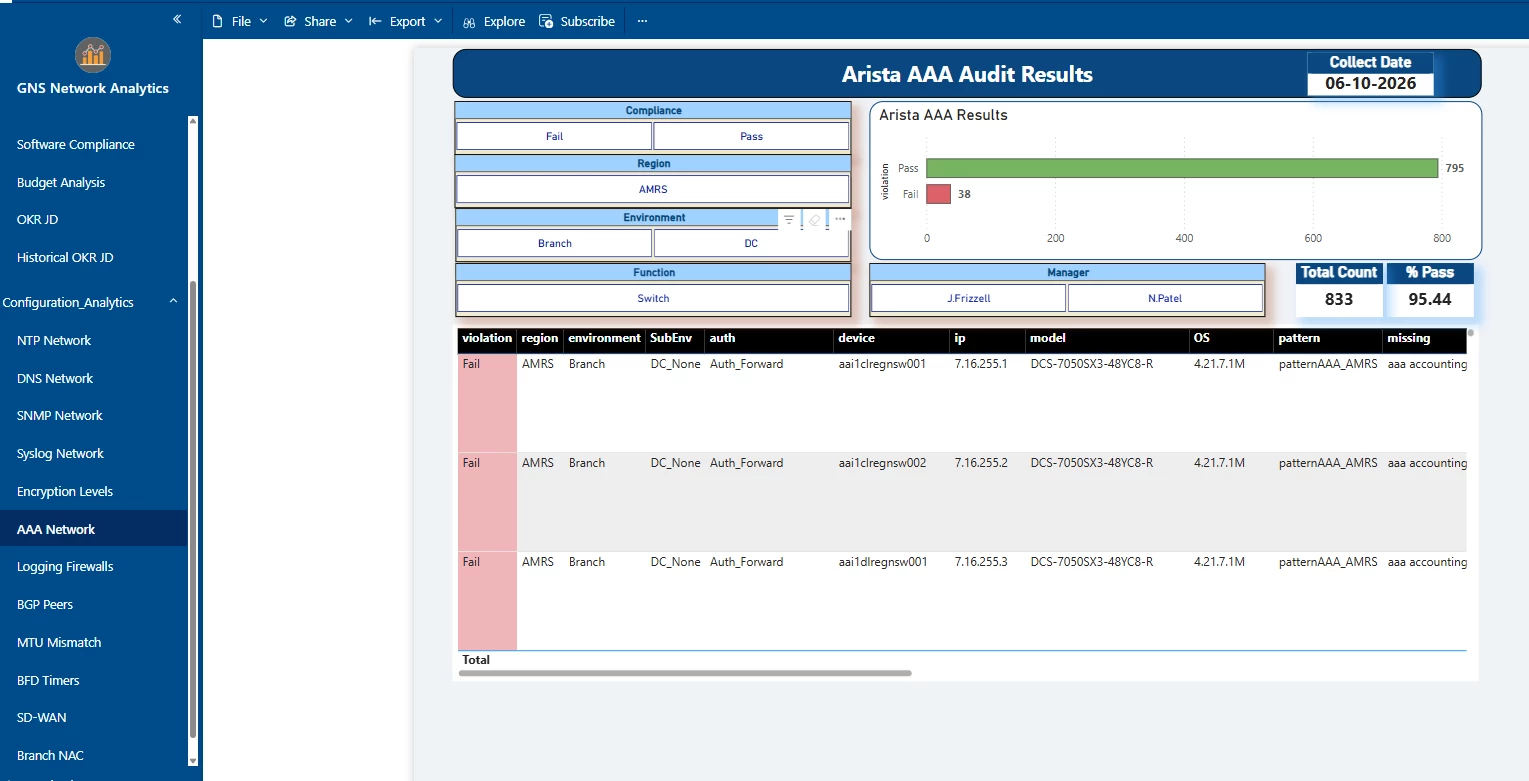

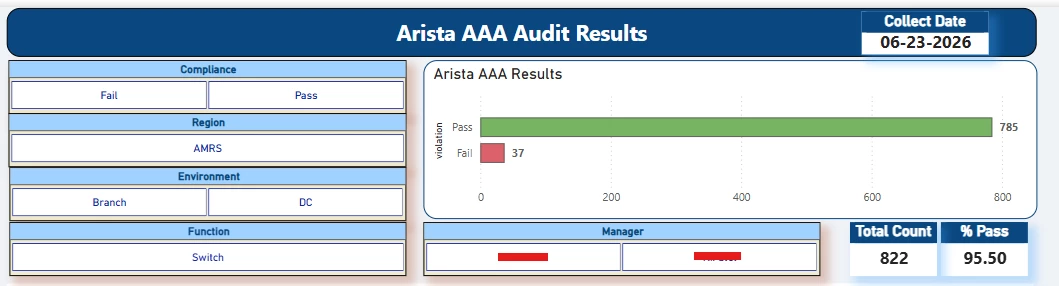

]);Arista NQE for AAA
/***
* @intent AAA Validation (NX-OS)
* @description Validates Cisco NX-OS AAA authentication/authorization/accounting config.
***/
import "PROD/Standards_Network/NetworkVars/tag_var_util";
// =============================================================================
// SECTION 1 — HELPER FUNCTIONS
// =============================================================================
isAciNode(device) =
CommandType.CISCO_ACI_FABRIC_VRFS in
(foreach command in device.outputs.commands
select command.commandType);
getConfigAsString(device) =
max(foreach command in device.outputs.commands
where command.commandType == CommandType.CONFIG
select command.response);
trimLine(line) =
"\n" + max(foreach m in regexMatches(line, re`[^ \t\n][^\n]*[^ \t\n]|[^ \t\n]`)
select m.string);
// =============================================================================
// SECTION 2 — COMPLIANCE PATTERNS (AAA lines only)
// =============================================================================
nxosPatternDefault = ```
Investigate
```;
// --- AMRS ---
nxosPatternAMRS_AAA = ```
aaa group server tacacs+ vty
server 1.1.1.1
server 1.1.1.2
source-interface {string}
aaa authentication login default group vty local
aaa authentication login console group vty local
aaa accounting default group vty
```;
// --- APAC ---
nxosPatternAPAC_AAA = ```
aaa group server tacacs+ vty
server 1.1.1.1
server 1.1.1.2
source-interface {string}
aaa authentication login default group vty local
```;
// --- China ---
nxosPatternChina_AAA = ```
aaa group server tacacs+ GROUP_DC10_TACACS+
server 1.1.1.1
use-vrf management
aaa authentication login default group GROUP_DC10_TACACS+
aaa authentication login console group GROUP_DC10_TACACS+
aaa authorization config-commands default group GROUP_DC10_TACACS+ local
aaa authorization commands default group GROUP_DC10_TACACS+ local
aaa authorization config-commands console group GROUP_DC10_TACACS+ local
aaa authorization commands console group GROUP_DC10_TACACS+ local
aaa accounting default group GROUP_DC10_TACACS+
```;
// --- EMEA ---
nxosPatternEMEA_AAA = ```
aaa group server tacacs+ tac1
server 1.1.1.1
server 1.1.1.2
aaa authentication login default group tac1
aaa authorization config-commands default group tac1 local
aaa authorization commands default group tac1 local
```;
// =============================================================================
// SECTION 3 — REGEX PATTERNS
// =============================================================================
nxosAaaPattern = re`\naaa [^\n]*`;
nxosAaaGroupBlock = re`\naaa group server tacacs\+[^\n]*(?:\n[ \t]+[^\n]+)*`;
nxosAaaGroupMembers = re`\n[ \t]+(?:server|source-interface|use-vrf)[^\n]*`;
// Combined pattern for ordered config extraction (AAA only)
nxosAaaCombinedPattern = re`\n(?:aaa group server tacacs\+[^\n]*(?:\n[ \t]+[^\n]+)*|aaa [^\n]*)`;
// =============================================================================
// SECTION 4 — MAIN LOGIC
// =============================================================================
main =
foreach device in network.devices
where device.platform.os == OS.NXOS
where !isAciNode(device)
where device.name == device.system.physicalName
let configResponse = getConfigAsString(device)
let configAsString = if isPresent(configResponse) then configResponse else ""
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let subDc = get_SubDc_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp // STEP 1: Select compliance template
// Each branch returns {block: <template>, name: "<templateName>"}
let selected =
// --- AMRS ---
if region == "AMRS" then {block: nxosPatternAMRS_AAA, name: "nxosPatternAMRS_AAA"}
// --- APAC ---
else if region == "APAC" then {block: nxosPatternAPAC_AAA, name: "nxosPatternAPAC_AAA"}
// --- China ---
else if region == "China" then {block: nxosPatternChina_AAA, name: "nxosPatternChina_AAA"}
// --- EMEA ---
else if region == "EMEA" then {block: nxosPatternEMEA_AAA, name: "nxosPatternEMEA_AAA"}
// --- Default / Investigate ---
else {block: nxosPatternDefault, name: "Investigate"}
let nxosPattern = selected.block
let patternName = selected.name
// STEP 2: Build valid lines from template
let patternStr = replace(toString(nxosPattern), "```", "")
let patternGroupStr = join("", foreach grpMatch in regexMatches(patternStr, nxosAaaGroupBlock) select grpMatch.string)
let validLines =
(foreach r in regexMatches(patternStr, nxosAaaPattern) select trimLine(r.string)) +
(foreach r in regexMatches(patternGroupStr, nxosAaaGroupMembers) select trimLine(r.string))
// Normalize {string} placeholders in source-interface lines
let normalizedValid =
(foreach line in validLines
select if length(regexMatches(line, re`\nsource-interface \{string\}`)) > 0
then "\nsource-interface"
else replace(line, " {string}", ""))
// STEP 3: Run blockDiff
let blockDiffResult = blockDiff(device.files.config, nxosPattern)
// STEP 4: Extract actual AAA lines from device config
let deviceGroupStr = join("", foreach devGrpMatch in regexMatches(configAsString, nxosAaaGroupBlock) select devGrpMatch.string)
let configuredLines =
(foreach r in regexMatches(configAsString, nxosAaaPattern) select trimLine(r.string)) +
(foreach r in regexMatches(deviceGroupStr, nxosAaaGroupMembers) select trimLine(r.string))
let normalizedConfigured =
(foreach line in configuredLines
select if length(regexMatches(line, re`\nsource-interface [^\n]+`)) > 0
then "\nsource-interface"
else line)
// STEP 5: Extra = lines on device not in template
let extraLines = normalizedConfigured - normalizedValid
// STEP 6: Ordered config extraction for display
let aaaConfigStr =
join("", foreach r in regexMatches(configAsString, nxosAaaCombinedPattern)
select r.string)
select {
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0 then "Fail" else "Pass",
device: device.name,
ip: ip,
OS: device.platform.osVersion,
model: device.platform.model,
pattern: patternName,
missing: if blockDiffResult.diffCount == 0
then "None"
else toString(blockDiffResult.blocks),
extra: if length(extraLines) == 0
then "None"
else join("\n", foreach line in extraLines
select replace(line, "\n", "")),
AAA_Config: if aaaConfigStr == ""
then "None"
else aaaConfigStr,
region: region,
vrf: vrf,
mgmtSource: mgmtSource,
environment: environment,
SubEnv: subDc,
function: deviceFunc,
manager: manager,
tags: device.tagNames,
};
export nxos_aaa_compliance = main();
main()
IOS-XE NQE for AAA
/***
* @intent AAA Validation (IOS-XE)
* @description Validates Cisco IOS-XE AAA authentication/authorization/accounting config.
***/
import "PROD/Standards_Network/NetworkVars/tag_var_util";
// =============================================================================
// SECTION 1 — HELPER FUNCTIONS
// =============================================================================
flatten(outer) =
foreach list in outer
foreach item in list
select item;
getAAATextBlock(parsedConfig) =
flatten(foreach line in parsedConfig
where matches(line.text, "aaa [ag]*")
select [line.text] +
flatten(foreach child in line.children
select [" " + child.text] +
(foreach child2 in child.children
select " " + child2.text)));
// =============================================================================
// SECTION 2 — COMPLIANCE PATTERNS (AAA lines only)
// =============================================================================
IosDiffPatternDummy = ```
Investigate_Device
```;
// --- AMRS ---
IosDiffPatternAMRS_Switch_AAA = ```
aaa group server tacacs+ vty
server name dc02gmcisepn01
server name dc01gmcisepn01
ip tacacs source-interface Loopback0
aaa authentication login vty group standard local
aaa authentication dot1x default group ise
aaa authorization console
aaa authorization config-commands
aaa authorization exec default group standard local
aaa authorization commands 15 default group standard local
aaa authorization network default group ise
aaa authorization network dnac-cts-list group ise
aaa accounting update newinfo periodic 480
aaa accounting identity default start-stop group ise
aaa accounting exec default start-stop group standard
aaa accounting commands 15 default start-stop group standard
aaa accounting system default start-stop group standard
```;
// --- EMEA ---
IosDiffPatternEmeaLan_AAA = ```
aaa group server tacacs+ tac1
server name TIN1
server name BCN1
aaa authentication login default group standard local
aaa authentication login console local
aaa authorization config-commands
aaa authorization exec default group standard local
aaa authorization commands 1 default group standard local
aaa authorization commands 15 default group standard local
aaa accounting exec default start-stop group standard
aaa accounting commands 1 default stop-only group standard
aaa accounting commands 15 default start-stop group standard
aaa accounting system default start-stop group standard
```;
// --- APAC ---
IosDiffPatternApacLan_AAA = ```
aaa group server tacacs+ vty
server name pum1gmcisepn01
server name hyd1gmcisepn01
ip tacacs source-interface Loopback0
aaa authentication login vty group standard local
aaa authorization config-commands
aaa authorization exec default group standard local
aaa authorization commands 15 default group standard local
aaa accounting update newinfo periodic 480
aaa accounting exec default start-stop group standard
aaa accounting commands 15 default start-stop group standard
```;
// =============================================================================
// SECTION 3 — MAIN LOGIC
// =============================================================================
main =
foreach device in network.devices
where device.platform.os == OS.IOS_XE
where device.name == device.system.physicalName
// STEP 1: Collect tag-based metadata
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let subDc = get_SubDc_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp // STEP 2: Select compliance template
// Each branch returns {block: <template>, name: "<templateName>"}
let selected =
// --- AMRS ---
if region == "AMRS" then {block: IosDiffPatternAMRS_Switch_AAA, name: "IosDiffPatternAMRS_Switch_AAA"}
// --- EMEA ---
else if region == "EMEA" then {block: IosDiffPatternEmeaLan_AAA, name: "IosDiffPatternEmeaLan_AAA"}
// --- APAC ---
else if region == "APAC" then {block: IosDiffPatternApacLan_AAA, name: "IosDiffPatternApacLan_AAA"}
// --- Default / Investigate ---
else {block: IosDiffPatternDummy, name: "Investigate"}
let IosDiffPattern = selected.block
let patternName = selected.name
// STEP 3: Run blockDiff and extract lines
let blockDiffResult = blockDiff(device.files.config, IosDiffPattern)
let patternText = replace(toString(IosDiffPattern), "```", "")
let patternAsConfig = parseConfigBlocks(OS.OTHER, patternText)
let validLines = getAAATextBlock(patternAsConfig)
let configuredLines = getAAATextBlock(device.files.config)
let extraLines = configuredLines - validLines
select {
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0 then "Fail" else "Pass",
device: device.name,
ip: ip,
auth: auth,
OS: device.platform.osVersion,
model: device.platform.model,
pattern: patternName,
missing: if blockDiffResult.diffCount == 0
then "None"
else toString(blockDiffResult.blocks),
extra: if length(extraLines) == 0
then "None"
else join("\n", extraLines),
AAA_Config: if length(configuredLines) == 0
then "None"
else join("\n", configuredLines),
region: region,
vrf: vrf,
mgmtSource: mgmtSource,
environment: environment,
SubEnv: subDc,
function: deviceFunc,
manager: manager,
};
export ios_aaa_compliance = main();
main()Arista NQE for AAA
/***
* @intent AAA Validation (EOS)
* @description Validates Arista EOS AAA authentication/authorization/accounting config.
***/
import "PROD/Standards_Network/NetworkVars/tag_var_util";
// =============================================================================
// SECTION 1 — HELPER FUNCTIONS
// =============================================================================
getConfigAsString(device) =
max(foreach command in device.outputs.commands
where command.commandType == CommandType.CONFIG
select command.response);
// =============================================================================
// SECTION 2 — COMPLIANCE PATTERNS (AAA lines only)
// =============================================================================
patternDefault = ```
Investigate
```;
patternAAA_Standard = ```
aaa authentication login default group tacacs+ local
aaa authentication enable default group tacacs+ local
aaa authorization exec default group tacacs+ local
aaa authorization commands all default group tacacs+ local
aaa accounting exec default start-stop group tacacs+
aaa accounting commands all default start-stop group tacacs+
```;
// All AMRS patterns share the same AAA lines — one pattern covers all variants
patternAAA_AMRS = ```
aaa authentication login default group tacacs+ local
aaa authentication enable default group tacacs+ local
aaa authorization exec default group tacacs+ local
aaa authorization commands all default group tacacs+ local
aaa accounting exec default start-stop group tacacs+
aaa accounting commands all default start-stop group tacacs+
```;
// =============================================================================
// SECTION 3 — REGEX PATTERNS
// =============================================================================
eosAaaPattern = re`\naaa a[^\n]*`;
// =============================================================================
// SECTION 4 — MAIN LOGIC
// =============================================================================
main =
foreach device in network.devices
where device.platform.os == OS.ARISTA_EOS
where device.name == device.system.physicalName
// STEP 1: Get config as String
let configResponse = getConfigAsString(device)
let configAsString = if isPresent(configResponse) then configResponse else ""
// STEP 2: Collect tag-based metadata
let region = get_region_from_tags(device.tagNames)
let deviceFunc = get_function_from_tags(device.tagNames)
let environment = get_env_from_tags(device.tagNames)
let vrf = return_vrf_from_tags(device.tagNames)
let manager = get_mgr_from_tags(device.tagNames)
let subDc = get_SubDc_from_tags(device.tagNames)
let mgmtSource = return_mgmt_from_tags(device.tagNames)
let auth = get_auth_from_tags(device.tagNames)
let ip = device.snapshotInfo.collectionIp
// STEP 3: Select compliance template
// All AMRS variants share the same AAA lines so one pattern covers all
// Each branch returns {block: <template>, name: "<templateName>"}
let selected =
if region == "AMRS" then {block: patternAAA_AMRS, name: "patternAAA_AMRS"}
else {block: patternDefault, name: "Investigate"}
let pattern = selected.block
let patternName = selected.name
// STEP 4: Extract valid AAA lines from the selected template
let patternStr = replace(toString(pattern), "```", "")
let validLines =
(foreach r in regexMatches(patternStr, eosAaaPattern) select r.string)
// STEP 5: Run blockDiff against selected pattern
let blockDiffResult = blockDiff(device.files.config, pattern)
// STEP 6: Extract actual AAA lines from device config
let configuredLines =
(foreach r in regexMatches(configAsString, eosAaaPattern) select r.string)
// STEP 7: Extra = lines on device not in the selected template
let extraLines = configuredLines - validLines
// STEP 8: Build display column
let allAaaLines =
(foreach r in regexMatches(configAsString, eosAaaPattern)
select replace(r.string, "\n", ""))
select {
violation: if blockDiffResult.diffCount > 0 || length(extraLines) > 0 then "Fail" else "Pass",
device: device.name,
ip: ip,
auth: auth,
OS: device.platform.osVersion,
model: device.platform.model,
pattern: patternName,
missing: if blockDiffResult.diffCount == 0
then "None"
else toString(blockDiffResult.blocks),
extra: if length(extraLines) == 0
then "None"
else join("\n", order(foreach line in extraLines
select replace(line, "\n", ""))),
AAA_Config: if length(allAaaLines) == 0
then "None"
else join("\n", order(allAaaLines)),
region: region,
vrf: vrf,
mgmtSource: mgmtSource,
environment: environment,
SubEnv: subDc,
function: deviceFunc,
manager: manager,
};
export eos_aaa_compliance = main();
main()
